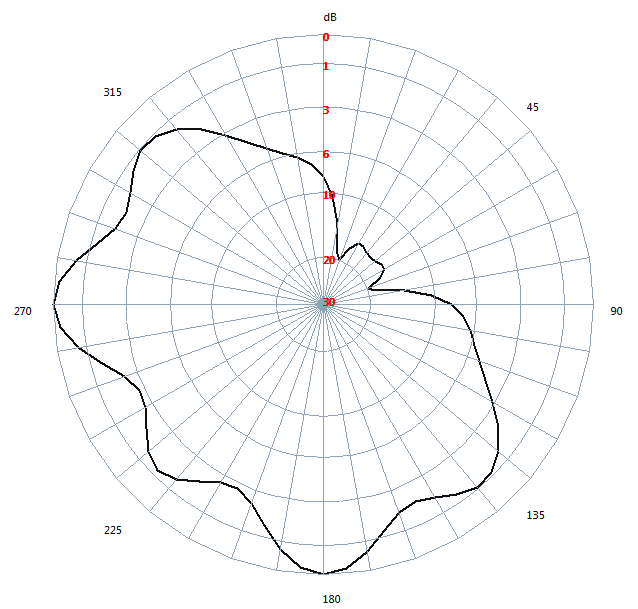

A list of Melbourne metropolitan broadcast and retransmission sites are listed below. Please select a site to retrieve a technical specifications table, which includes the site's location, TV transmission details and a corresponding Horizontal Radiation Pattern (HRP). Alternatively, click "Select All" at the bottom of the list and retrieve a full table of all sites' technical specifications.

Main Towers

Main SitesRetransmission Sites

Print Specifications

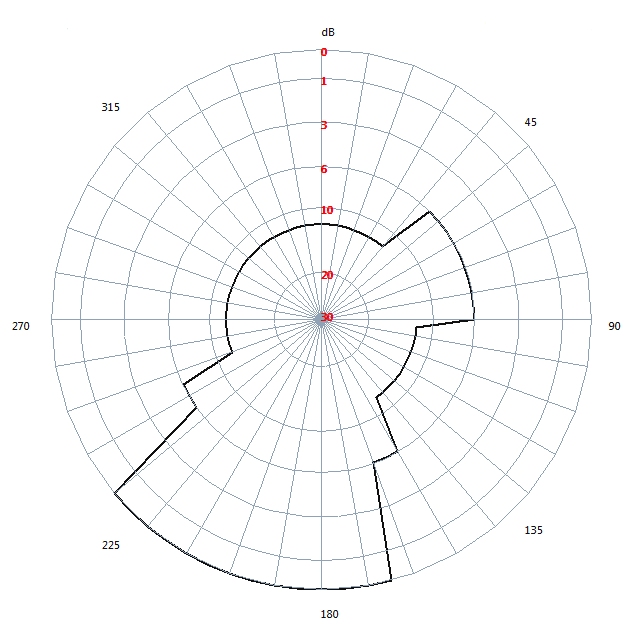

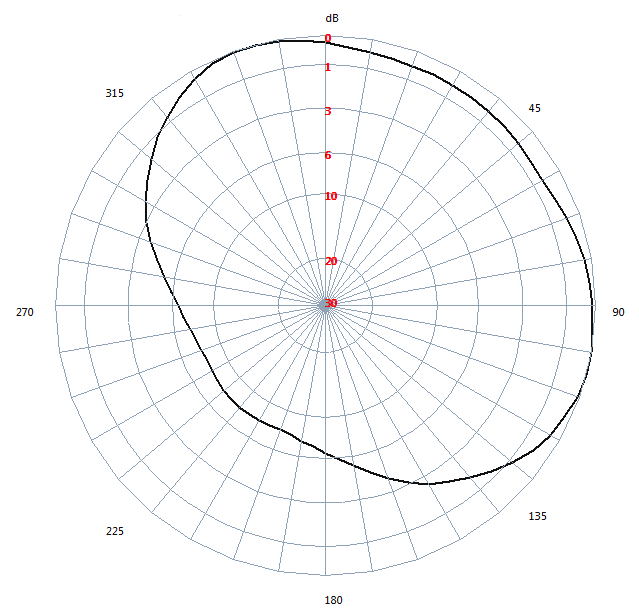

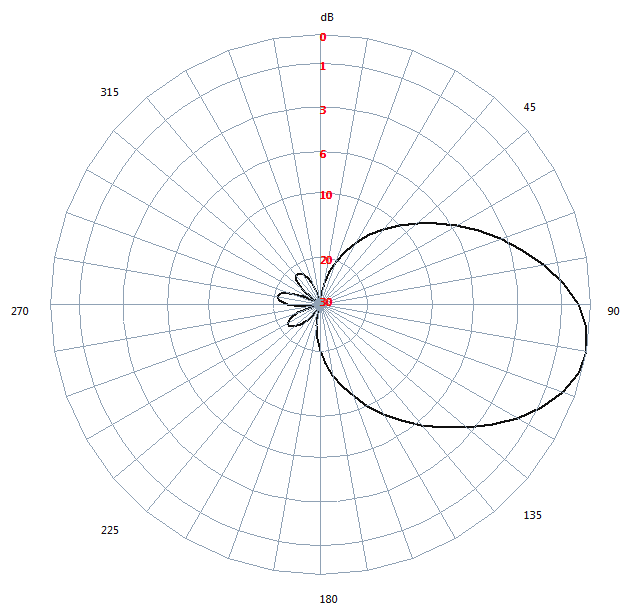

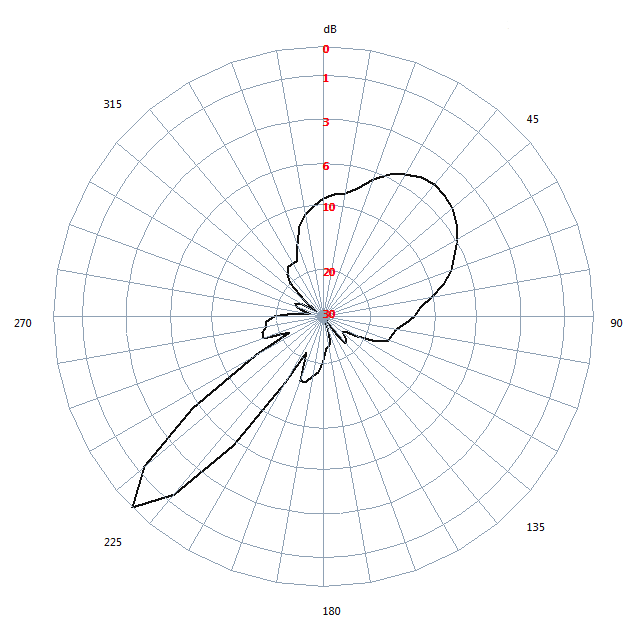

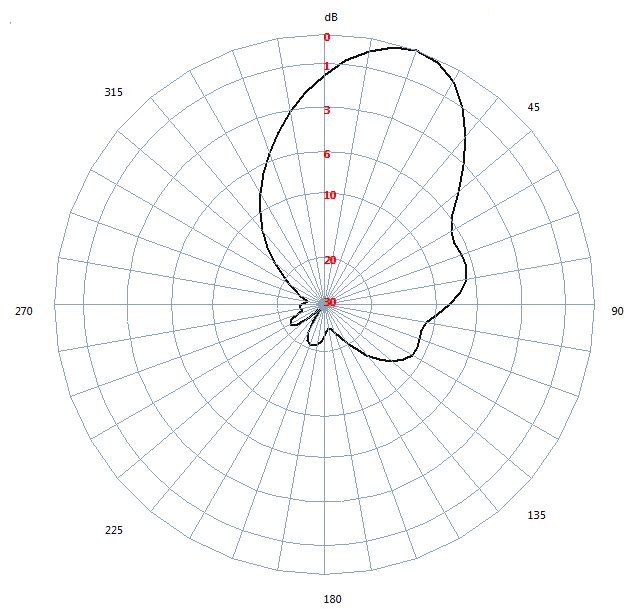

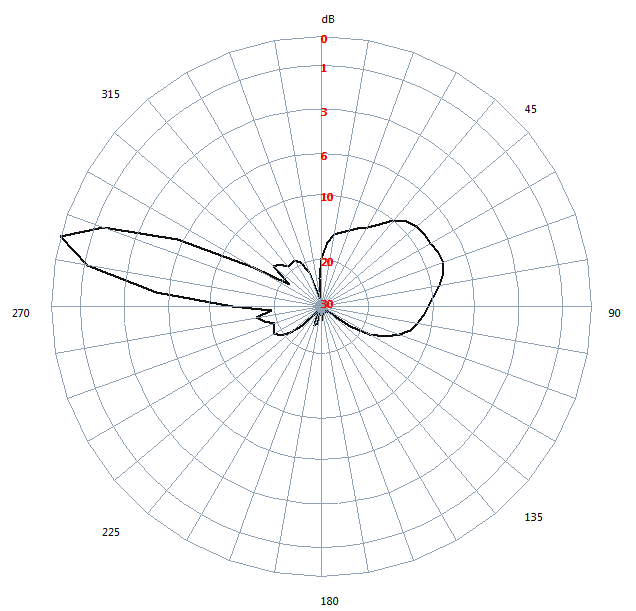

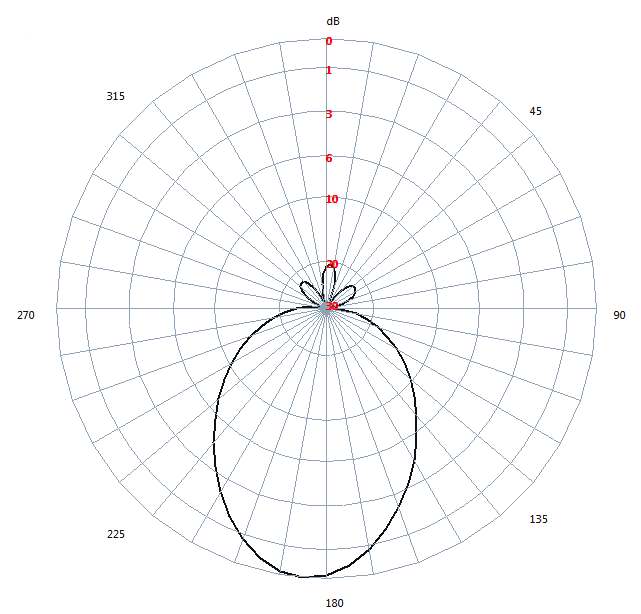

Site Name	Site ID ACMA	Site Location	Location Coordinates (GDA94)	TV Service	Spectrum Allocation		ERP (W)	Polarisation	HRP (Click to enlarge)
					Channel	Frequency (MHz)
Ornata Road	12013	12 Ornata Road MT DANDENONG	S37.837,E145.347	HSV	6	177.5	50000	H
				SBS	7	184.5	50000	H
				GTV	8	191.625	50000	H
				ATV	11	219.5	50000	H
				ABC	12	226.5	50000	H
				MGV	32	557.625	15000	H
Eyre Road	12015	8 Eyre Road MT DANDENONG	S37.835,E145.348	HSV	6	177.5	50000	H
				GTV	8	191.625	50000	H
				ATV	11	219.5	50000	H
Marysville	40602	Woods Lookout Track MOUNT GORDON	S37.508,E145.723	SBS	34	571.5	5	H
				ABC	35	578.5	5	H
				HSV	36	585.5	5	H
				GTV	37	592.5	5	H
				ATV	38	599.5	5	H
Healesville	36223	10 km N of Healesville MT ST LEONARD	S37.567,E145.525	SBS	34	571.5	250	V
				ABC	35	578.5	250	V
				HSV	36	585.5	250	V
				GTV	37	592.5	250	V
				ATV	38	599.5	250	V
Warburton	37165	Donna Buang Road (3 km N of Warburton) MOUNT VICTORIA	S37.725,E145.697	SBS	34	571.5	60	H
				ABC	35	578.5	60	H
				HSV	36	585.5	60	H
				GTV	37	592.5	60	H
				ATV	38	599.5	60	H

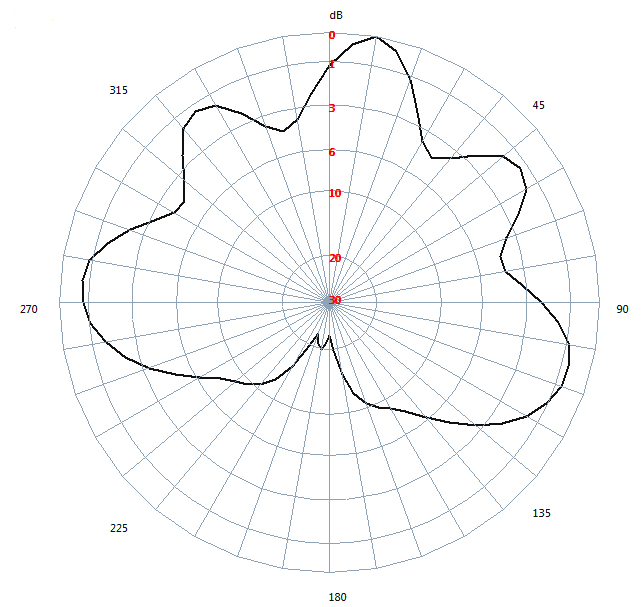

MCBD Bourke St	11591	600 Bourke Street Melbourne	S37.819,E144.957	SBS	40	613.5	270	V
				HSV	41	620.5	270	V
				ABC	43	634.5	270	V
				GTV	44	641.5	270	V
				ATV	45	648.5	270	V

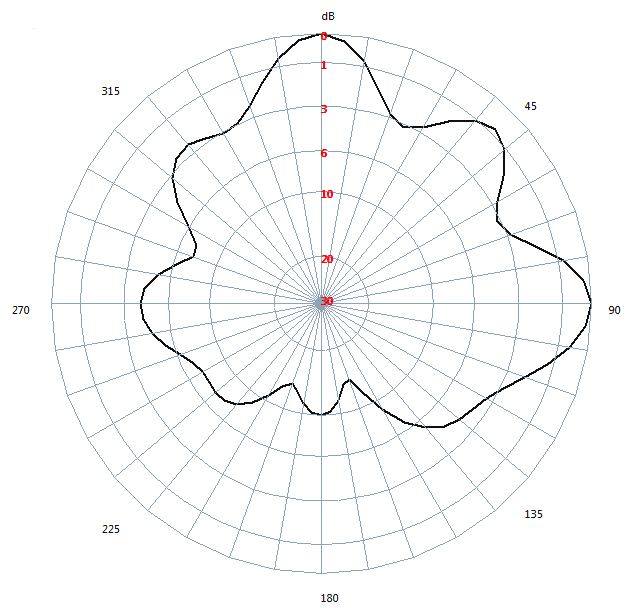

South Yarra	43388	Level 22 620 Chapel Street SOUTH YARRA	S37.839,E144.997	SBS	40	613.5	85	V
				HSV	41	620.5	85	V
				MGV	42	627.5	6	V
				ABC	43	634.5	85	V
				GTV	44	641.5	85	V
				ATV	45	648.5	85	V
Monbulk	9010048	89 Camms Rd MONBULK	S37.881,E145.402	HSV	46	655.5	50	V
				GTV	47	662.5	50	V
				ATV	48	669.5	50	V
				ABC	49	676.5	50	V
				SBS	50	683.5	50	V
Ferntree Gully	41003	11 Bruce Crescent FERNTREE GULLY	S37.881,E145.291	SBS	40	613.5	175	H
				HSV	41	620.5	175	H
				ABC	43	634.5	175	H
				GTV	44	641.5	175	H
				ATV	45	648.5	175	H
Upwey	150789	32a Belmont Avenue UPWEY	S37.904,E145.323	SBS	34	571.5	65	V
				ABC	35	578.5	65	V
				HSV	36	585.5	65	V
				GTV	37	592.5	65	V
				ATV	38	599.5	65	V
Selby	41005	5 Two Bays Crescent SELBY	S37.914,E145.38	SBS	34	571.5	250	H
				ABC	35	578.5	250	H
				HSV	36	585.5	250	H
				GTV	37	592.5	250	H
				ATV	38	599.5	250	H
Arthurs Seat	9000919	Steane Ave ARTHURS SEAT	S38.354,E144.952	HSV	41	620.5	225	H
				GTV	44	641.5	225	H
				ATV	45	648.5	225	H
Rosebud	300563	Council Offices cnr Besgrove St & Boneo Rd ROSEBUD	S38.371,E144.892	SBS	40	613.5	25	V
				HSV	41	620.5	25	V
				ABC	43	634.5	25	V
				GTV	44	641.5	25	V
				ATV	45	648.5	25	V
Geelong	11681	Montpellier Service Basin HIGHTON	S38.157,E144.314	HSV	46	655.5	4000	H
				GTV	47	662.5	4000	H
				ATV	48	669.5	4000	H
				ABC	49	676.5	4000	H
				SBS	50	683.5	4000	H
Anglesea	37379	Harvey Street MT INGOLDSBY	S38.413,E144.164	SBS	28	529.5	250	H
				ABC	29	536.5	250	H
				HSV	30	543.5	250	H
				GTV	31	550.5	250	H
				ATV	33	564.5	250	H
Wye River	153489	Birds Track WYE RIVER	S38.64,E143.876	SBS	34	571.5	75	V
				ABC	35	578.5	75	V
				HSV	36	585.5	75	V
				GTV	37	592.5	75	V
				ATV	38	599.5	75	V
