A list of Adelaide metropolitan broadcast and retransmission sites are listed below. Please select a site to retrieve a technical specifications table, which includes the site's location, TV transmission details and a corresponding Horizontal Radiation Pattern (HRP). Alternatively, click "Select All" at the bottom of the list and retrieve a full table of all sites' technical specifications.

Main Towers

Main SitesRetransmission Sites

Print Specifications

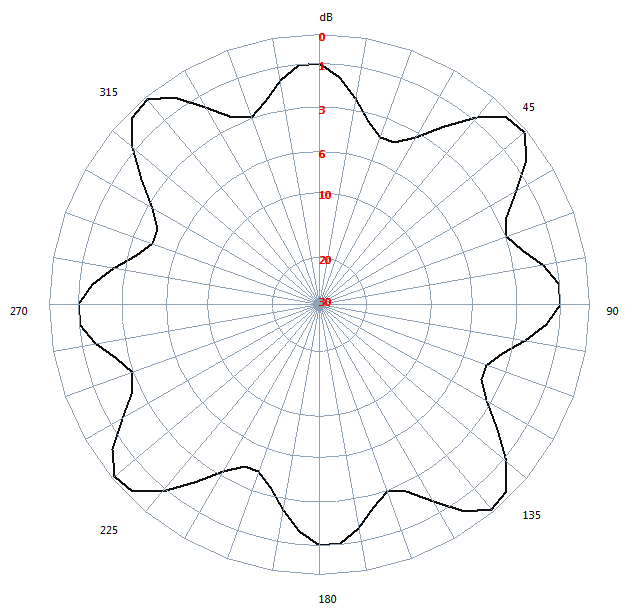

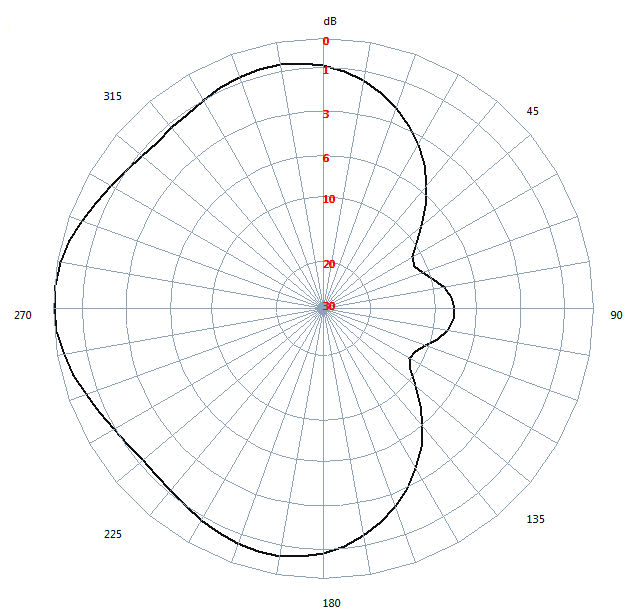

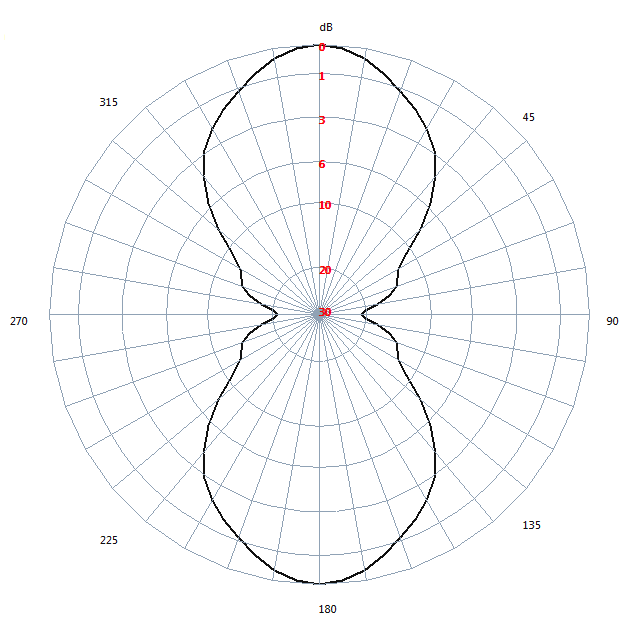

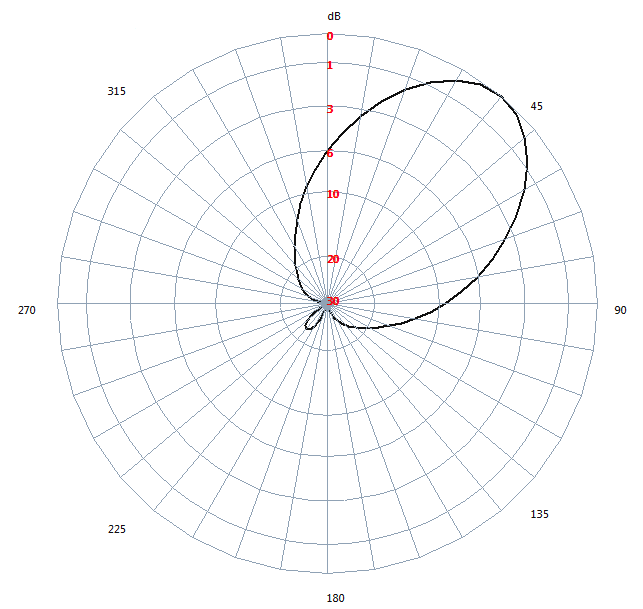

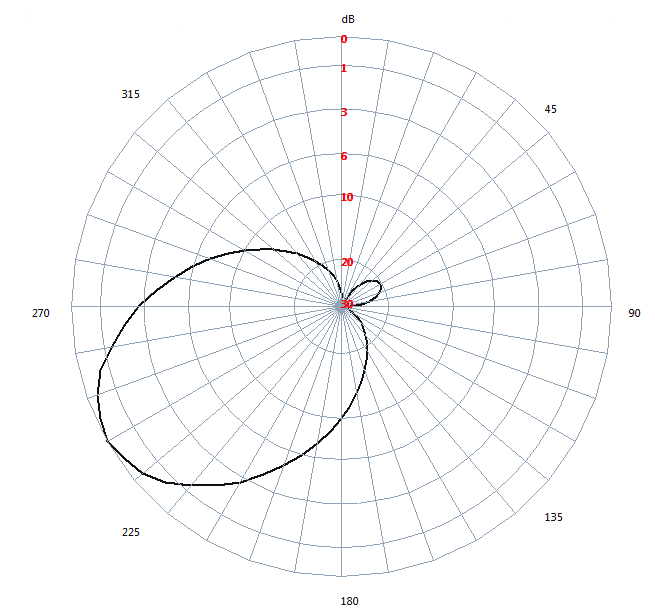

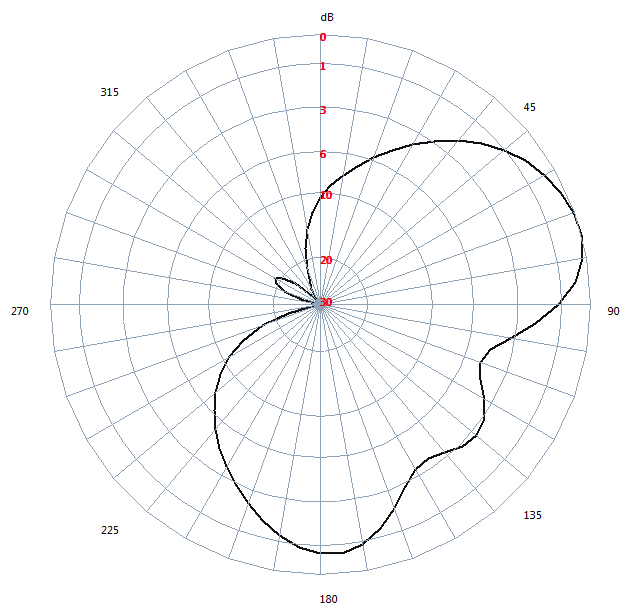

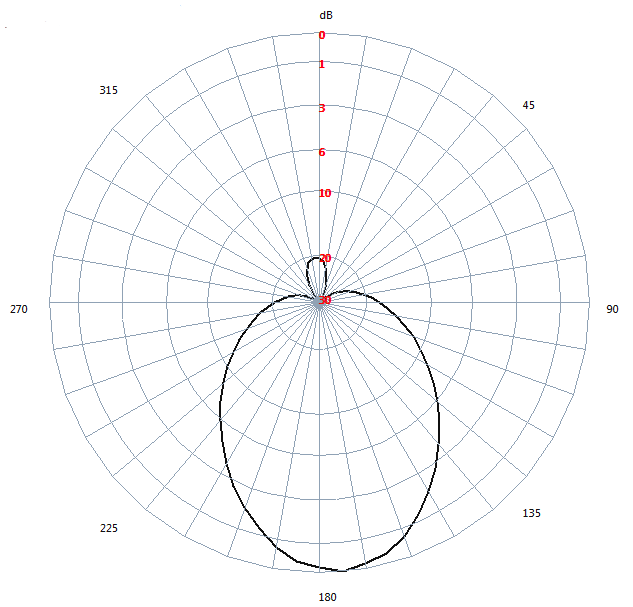

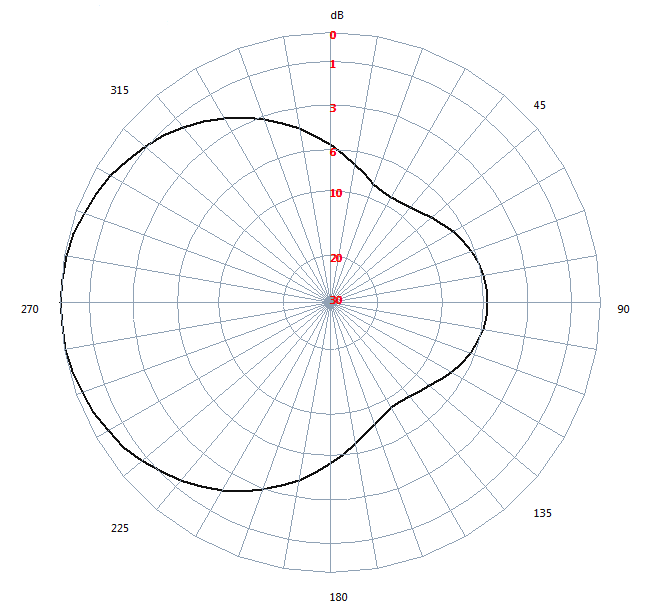

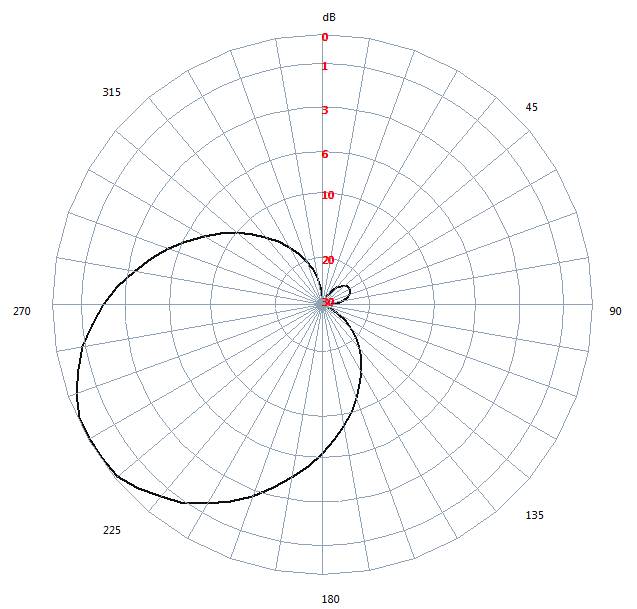

Site Name	Site ID ACMA	Site Location	Location Coordinates (GDA94)	TV Service	Spectrum Allocation		ERP (W)	Polarisation	HRP (Click to enlarge)
					Channel	Frequency (MHz)
Crafers	23181	115 Mount Lofty Summit Road CRAFERS	S34.981,E138.708	SAS	6	177.5	50000	H
				SBS	7	184.5	50000	H
				NWS	8	191.5	50000	H
				ADS	11	219.5	50000	H
				ABC	12	226.5	50000	H
NWS	23132	109 Summit Road CRAFERS	S34.982,E138.708	SAS	6	177.5	50000	H
				NWS	8	191.5	50000	H
				ADS	11	219.5	50000	H
Eudunda	24257	Julia Road EUDUNDA	S34.17,E139.067	SBS	34	571.5	12.5	V
				SAS	35	578.5	12.5	V
				NWS	36	585.5	12.5	V
				ADS	37	592.5	12.5	V
				ABC	39	606.5	12.5	V
Maitland	24754	2 km northeast of MAITLAND	S34.356,E137.696	SAS	46	655.5	1600	V
				NWS	47	662.5	1600	V
				ADS	48	669.5	1600	V
				SBS	50	683.5	1600	V
				ABC	51	690.5	1600	V
Angaston	150545	0.8 km East of ANGASTON	S34.505,E139.059	SBS	34	571.5	25	H
				SAS	35	578.5	25	H
				NWS	36	585.5	25	H
				ADS	37	592.5	25	H
				ABC	39	606.5	25	H
Swan Reach	41259	4 km SE of SWAN REACH	S34.601,E139.599	SBS	34	571.5	75	H
				SAS	35	578.5	75	H
				NWS	36	585.5	75	H
				ADS	37	592.5	75	H
				ABC	39	606.5	75	H
Lyndoch	153515	STEDS Lagoons Barossa Valley Way LYNDOCH	S34.601,E138.897	SBS	34	571.5	15	V
				SAS	35	578.5	15	V
				NWS	36	585.5	15	V
				ADS	37	592.5	15	V
				ABC	39	606.5	15	V
Gumeracha	501000	3 km ESE of Kersbrook MT GOULD	S34.79,E138.882	SAS	46	655.5	50	H
				NWS	47	662.5	50	H
				ADS	48	669.5	50	H
				ABC	49	676.5	50	H
				SBS	50	683.5	50	H
Mannum	23882	Quarry Reserve adj to East Front Rd MANNUM	S34.893,E139.355	SBS	41	620.5	210	H
				ABC	42	627.5	210	H
				SAS	43	634.5	210	H
				NWS	44	641.5	210	H
				ADS	45	648.5	210	H
ACBD Grenfell St	140344	25 Grenfell Street ADELAIDE	S34.925,E138.601	SBS	34	571.5	1000	H
				SAS	35	578.5	1000	H
				NWS	36	585.5	1000	H
				ADS	37	592.5	1000	H
				ABC	39	606.5	1000	H
Strathalbyn	500324	SA Water Tower Marchants Rd STRATHALBYN	S35.25,E138.899	SBS	41	620.5	50	V
				ABC	42	627.5	50	V
				SAS	43	634.5	50	V
				NWS	44	641.5	50	V
				ADS	45	648.5	50	V
Myponga	153437	Myponga Hill MYPONGA	S35.415,E138.494	SBS	41	620.5	25	V
				ABC	42	627.5	25	V
				SAS	43	634.5	25	V
				NWS	44	641.5	25	V
				ADS	45	648.5	25	V
Carrickalinga	150546	0.5 km E of Haycock Point CARRICKALINGA	S35.42,E138.328	SAS	46	655.5	10	H
				NWS	47	662.5	10	H
				ADS	48	669.5	10	H
				ABC	49	676.5	10	H
				SBS	50	683.5	10	H
Yankalilla	23307	Jervois Road YANKALILLA	S35.453,E138.352	SBS	41	620.5	20	H
				ABC	42	627.5	20	H
				SAS	43	634.5	20	H
				NWS	44	641.5	20	H
				ADS	45	648.5	20	H
Normanville	23318	Mill Road NORMANVILLE	S35.464,E138.317	SAS	35	578.5	40	V
				NWS	36	585.5	40	V
				ADS	37	592.5	40	V
				ABC	38	599.5	40	V
				SBS	39	606.5	40	V
Newland Hill	150957	5.5km SW of Victor Harbor NEWLAND HILL	S35.582,E138.572	SBS	34	571.5	500	V
				SAS	35	578.5	500	V
				NWS	36	585.5	500	V
				ADS	37	592.5	500	V
				ABC	39	606.5	500	V
Cape Jervis	153273	Sappers Rd CAPE JERVIS	S35.597,E138.139	SBS	41	620.5	25	V
				ABC	42	627.5	25	V
				SAS	43	634.5	25	V
				NWS	44	641.5	25	V
				ADS	45	648.5	25	V
