A list of Brisbane metropolitan broadcast and retransmission sites are listed below. Please select a site to retrieve a technical specifications table, which includes the site's location, TV transmission details and a corresponding Horizontal Radiation Pattern (HRP). Alternatively, click "Select All" at the bottom of the list and retrieve a full table of all sites' technical specifications.

Main Towers

Main SitesRetransmission Sites

Print Specifications

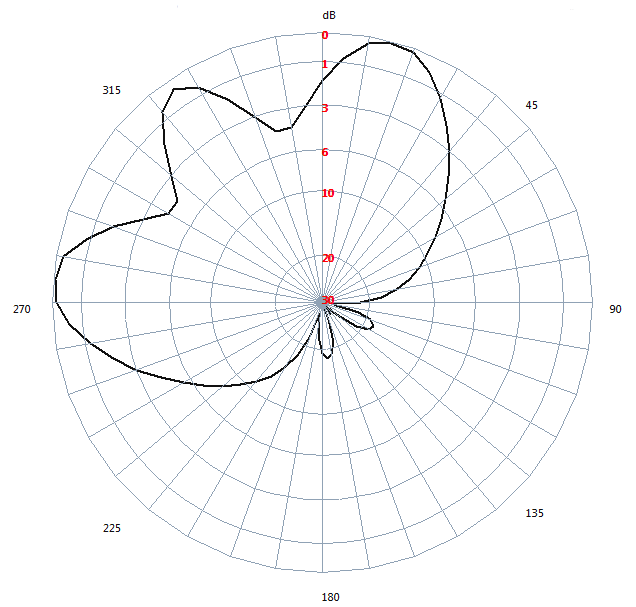

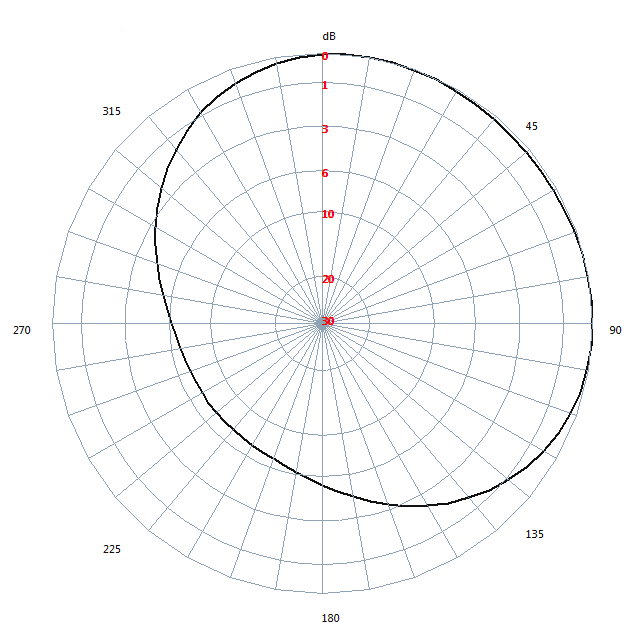

Site Name	Site ID ACMA	Site Location	Location Coordinates (GDA94)	TV Service	Spectrum Allocation		ERP (W)	Polarisation	HRP (Click to enlarge)
					Channel	Frequency (MHz)
T-Site	12749	445 Sir Samuel Griffith Drive MOUNT COOT-THA	S27.463,E152.948	BTQ	6	177.5	50000	H
				SBS	7	184.5	50000	H
				QTQ	8	191.625	50000	H
				TVQ	11	219.5	50000	H
Q-Site	12761	632 Sir Samuel Griffith Drive MOUNT COOT-THA	S27.466,E152.943	BTQ	6	177.5	50000	H
				QTQ	8	191.625	50000	H
				TVQ	11	219.5	50000	H
				ABC	12	226.5	50000	H
Mt Tamborine	403573	Golf Course Road MOUNT TAMBORINE	S27.968,E153.217	SBS	40	613.5	25000	H
				ABC	41	620.5	25000	H
				BTQ	42	627.5	25000	H
				TVQ	44	641.5	25000	H
				QTQ	45	648.5	25000	H
				NEN	46	655.5	25000	H
				NBN	47	662.5	25000	H
				NRN	48	669.5	25000	H
Bald Knob	141346	Cnr Bald Knob Road and Landsborough-Maleny Road BALD KNOB	S26.79,E152.918	BTQ	34	571.5	15000	H
				SBS	35	578.5	15000	H
				QTQ	37	592.5	15000	H
				TVQ	38	599.5	15000	H
				ABC	39	606.5	15000	H
D'Aguilar Hwy	140735	D'Aguilar Hwy Pohlmans Range Rd GREGORS CREEK	S26.992,E152.432	ABC	41	620.5	3000	V
				BTQ	42	627.5	3000	V
				QTQ	43	634.5	3000	V
				TVQ	44	641.5	3000	V
				SBS	45	648.5	3000	V
Esk	41250	Reservoir Hill ESK	S27.25,E152.436	SBS	34	571.5	15	V
				BTQ	35	578.5	15	V
				QTQ	37	592.5	15	V
				TVQ	38	599.5	15	V
				ABC	39	606.5	15	V
Wolffdene	13476	off Vennor Drive DARLINGTON RANGE	S27.788,E153.213	ABC	29	536.5	1800	V
				BTQ	30	543.5	1800	V
				QTQ	31	550.5	1800	V
				TVQ	32	557.5	1800	V
				SBS	33	564.5	1800	V
Canungra	402714	Laheys Lookout MOUNT TAMBORINE	S27.995,E153.181	ABC	29	536.5	100	H
				BTQ	30	543.5	100	H
				QTQ	31	550.5	100	H
				TVQ	32	557.5	100	H
				SBS	33	564.5	100	H
Boonah	14259	Reservoir Hospital Hill Worley Lane BOONAH	S28,E152.677	SBS	40	613.5	20	V
				BTQ	41	620.5	20	V
				ABC	42	627.5	20	V
				TVQ	44	641.5	20	V
				QTQ	45	648.5	20	V
Mt Alford	153285	Mt Alford Road Via Moogarah BOONAH	S28.073,E152.57	BTQ	46	655.5	125	V
				QTQ	47	662.5	125	V
				TVQ	48	669.5	125	V
				ABC	49	676.5	125	V
				SBS	50	683.5	125	V
Kooralbyn	150238	off Walker Drv KOORALBYN	S28.093,E152.823	ABC	29	536.5	20	V
				BTQ	30	543.5	20	V
				QTQ	31	550.5	20	V
				TVQ	32	557.5	20	V
				SBS	33	564.5	20	V
Currumbin	40379	66 Crest Drive CURRUMBIN	S28.138,E153.481	BTQ	34	571.5	3800	V
				QTQ	35	578.5	3800	V
				TVQ	36	585.5	3800	V
				NEN	37	592.5	3800	V
				NBN	38	599.5	3800	V
				NRN	39	606.5	3800	V
				SBS	49	676.5	3800	V
				ABC	50	683.5	3800	V
Rathdowney	153164	John Street Reservoir RATHDOWNEY	S28.214,E152.867	ABC	29	536.5	125	V
				BTQ	30	543.5	125	V
				QTQ	31	550.5	125	V
				TVQ	32	557.5	125	V
				SBS	33	564.5	125	V
Springbrook	153528	Bilbrough Lookout SPRINGBROOK	S28.241,E153.267	BTQ	34	571.5	1000	H
				QTQ	35	578.5	1000	H
				TVQ	36	585.5	1000	H
				NEN	37	592.5	1000	H
				NBN	38	599.5	1000	H
				NRN	39	606.5	1000	H
				SBS	49	676.5	1000	H
				ABC	50	683.5	1000	H
